1 Download the Cvmore Smart Air Conditioner Application(Referrer to as APP here in after)

Search “Cvmore Air Conditioner” to download Andriod version APP from Google Play and search “Cvmore Air Conditioner” to download IOS version APP from App Store.

2 Product Introduction

Cvmore smart air conditioner is functioning based on the built-in smart module SWM100 through the Wi-Fi network, that the mobile phones or other mobile devices can be connected to the Cvmore air conditioner to monitor and control the air conditioning status after installing the Cvmore Smart Air Conditioner APP.

3 Parameter of Smart Module SWM100
Model        SWM100
Transmitting Frequency 2.4G
Transmitting Power ≤18dBm
Power  Supply 12V  0.5A
Operating Temperature -10℃~70℃
Operating humidity 10%-90%RH
4 Precautions for Use
5 Add Air Conditioner
  1. 5.1 Please find the operating steps and method about download APP in Chapter 1 for detail.
  2. 5.2 Add Air Conditioner

    3. Complete the following steps to register:

  3. 5.2.1 Complete the following steps to register for Android system:

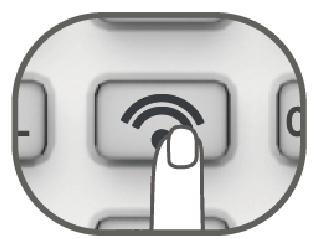

    2. ①Smart Module configuration:Connect the mobile phone with wireless router, turn on the power of the air conditioner, press" "button of the remote controller to start the Wi-Fi configuration.

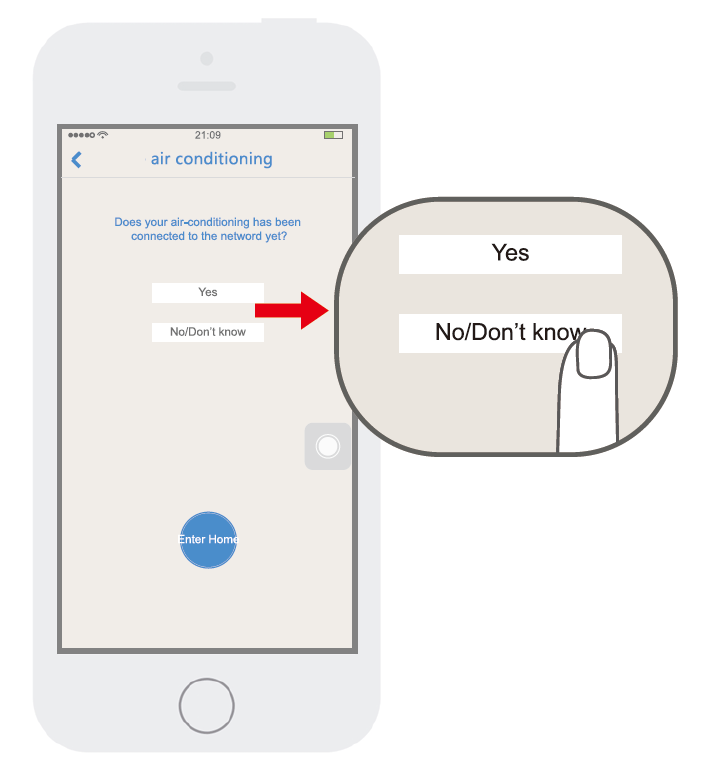

    4. ②Press “Add AC” in the APP, chose “No/ Don't know” if it is the first start.

      Please follow the instruction in Chapter 6 To add air conditioner, if it has been connected to Wi-Fi hotspot.

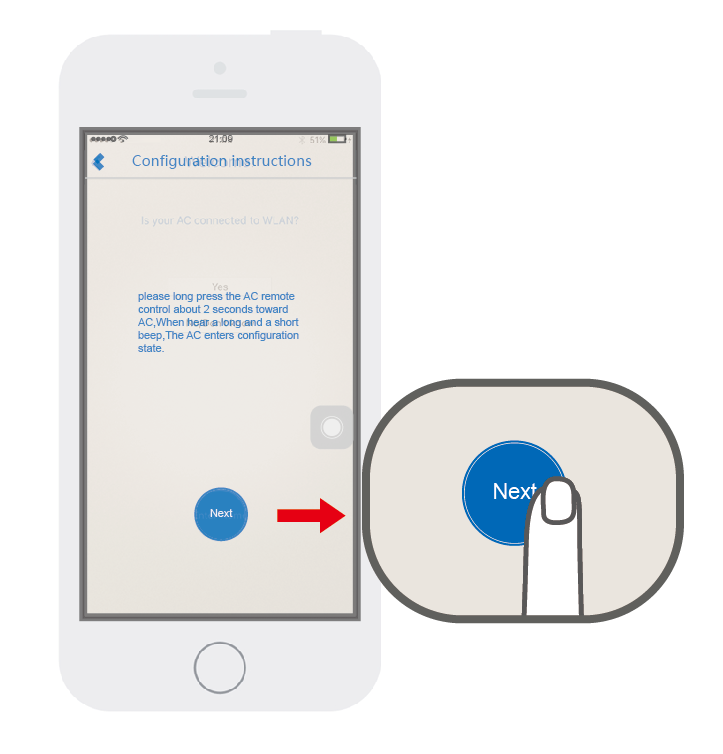

    6. ③Follow the interface instruction, long press the “ ” button of the remote controller for 2 seconds, the AC will enter configuration mode if the following three phenomena appear at the same time:
      ◆After long beep sound from air conditioner, and there will be another short beep sound.
      ◆Air conditioner will display“A2”for 3 seconds.
      ◆The Wi-Fi indication light will blink once every second on air conditioner panel.

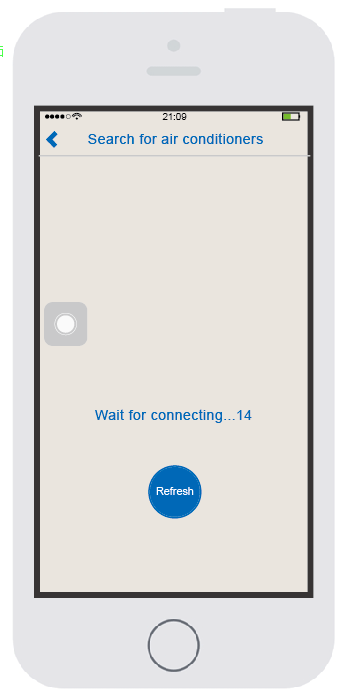

    7. ④Waiting for APP automatically search for configure the Air conditioner

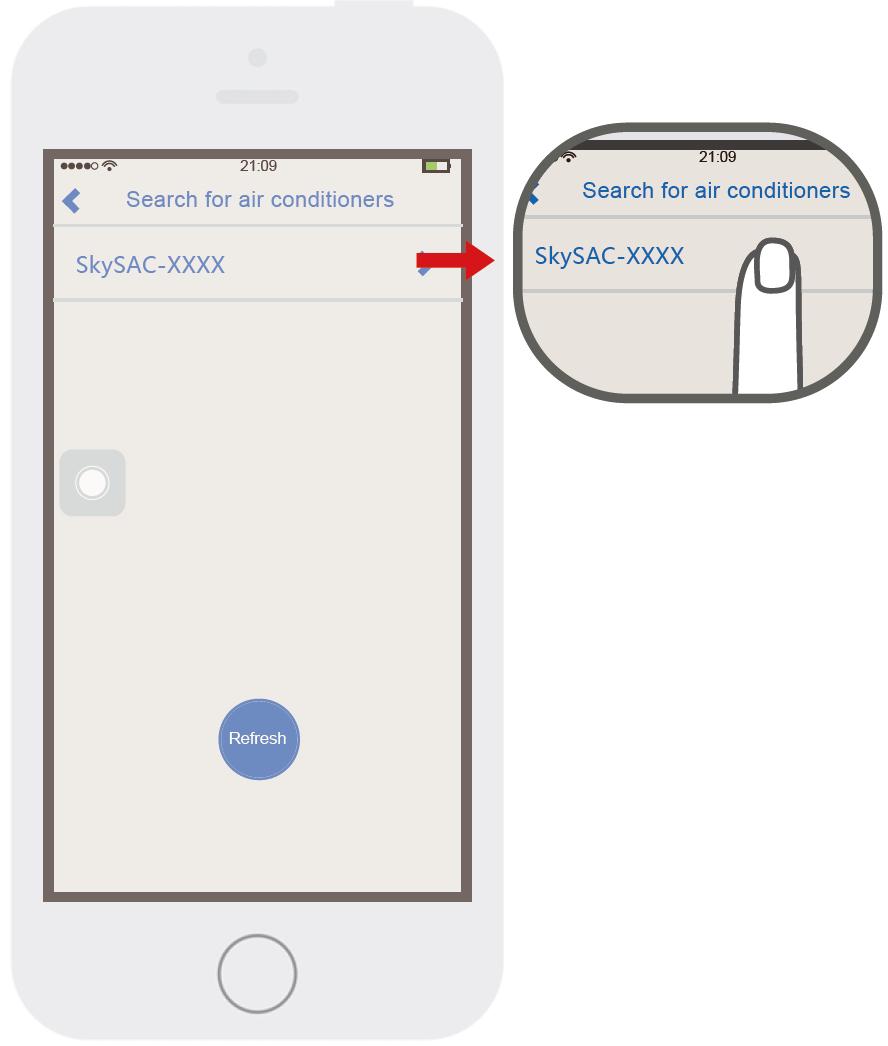

    9. Click to choose air conditioner on the list. Notice: Air conditioner hotspot name and password can be find at the left corner of the indoor unit.
             Hotspot Name: SkySAC _XXXX
             Hotspot Password: 88888888

    11. ⑤ Choose the Wi-Fi network ,type in the password and press “connect” to connect.

    13. Two beep sound from air conditioner indicates the connection is successful. Air conditioner panel will display “A3” for 3 seconds, the APP will enter operation interface at the same time.

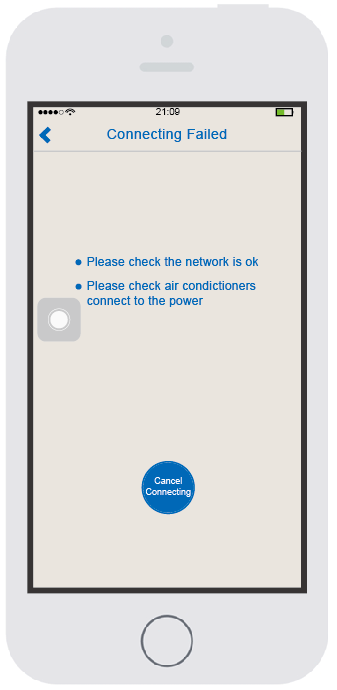

      16. The APP will remind after the connection failure.Please check the APP failure by the instruction.

    Notice:
    1.        ◆Support WPA/WPA2 wireless router connected encryption.
    2.        ◆5G wireless router is not supported.
    3.        ◆The password should limit in 8-32 characters or without password.
  4. 5.2.2 Complete the following steps to register for iOS system:

    2. ①Smart Module configuration:Connect the mobile phone with wireless router, turn on the power of the air conditioner, press" "button of the remote controller to start the Wi-Fi configuration.

    4. ②Press “Add AC” in the APP, chose “No/ Don't know” if it is the first start.

      Please follow the instruction in Chapter 6 To add air conditioner, if it has been connected to Wi-Fi hotspot.

    6. ③Follow the interface instruction, long press the “ ” button of the remote controller for 2 seconds, the AC will enter configuration mode if the following three phenomena appear at the same time:
      ◆After long beep sound from air conditioner, and there will be another short beep sound.
      ◆Air conditioner will display“A2”for 3 seconds.
      ◆The Wi-Fi indication light will blink once every second on air conditioner panel.

    7. ④ Change the button to switch，

    8. Click to choose air conditioner on the list. Notice: Air conditioner hotspot name and password can be find at the left corner of the indoor unit.
             Hotspot Name: SkySAC _XXXX
             Hotspot Password: 88888888

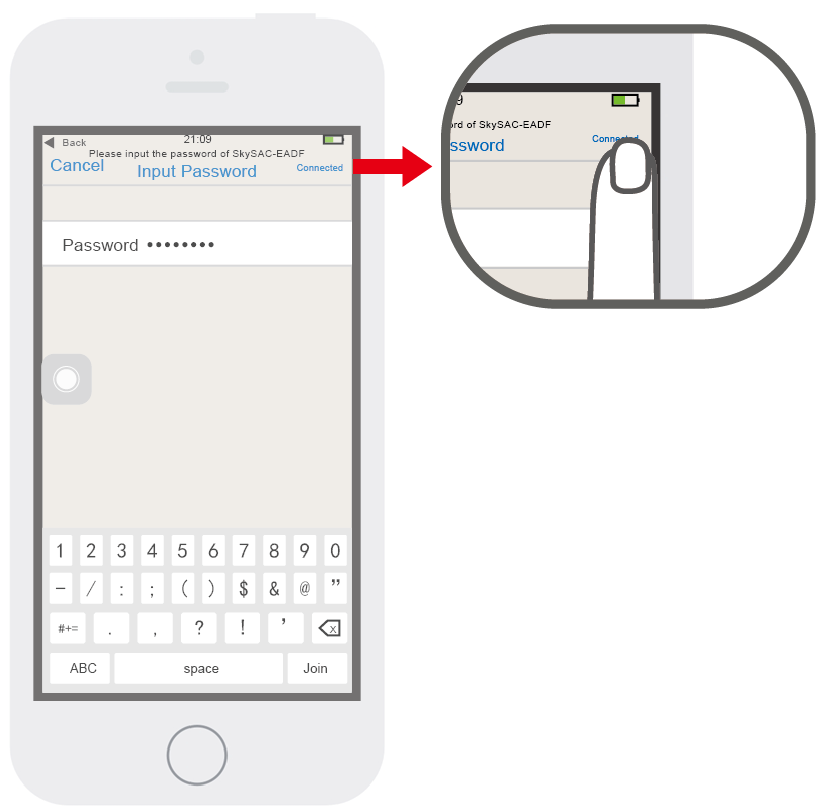

    10. ⑤ Choose network name SkySAC _XXXX Enter the Password: 88888888

      12. Join the network.

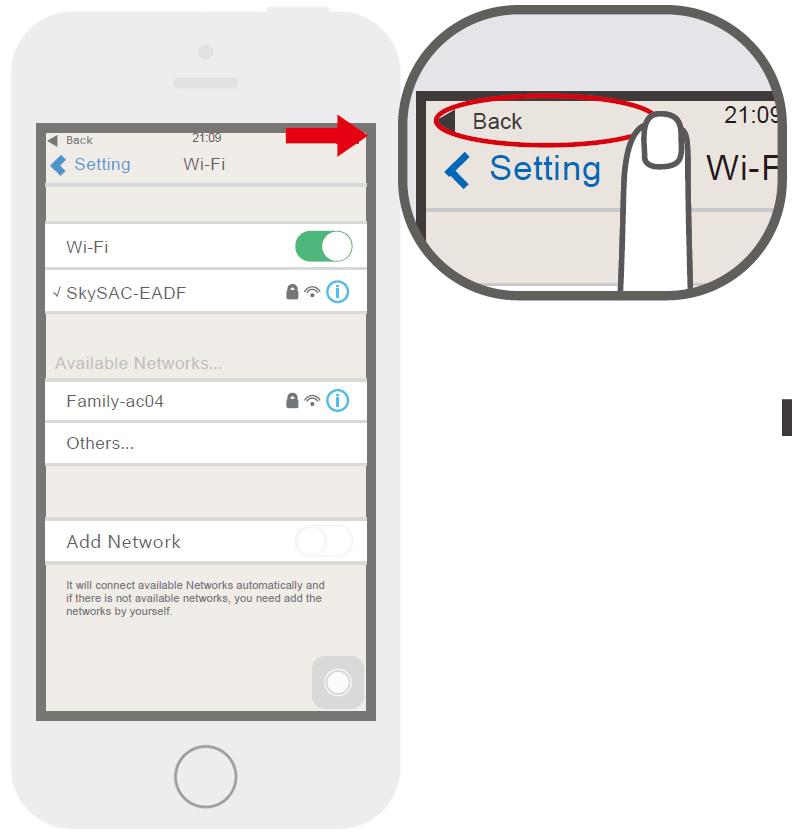

      13. ⑥ Press the back return to APP

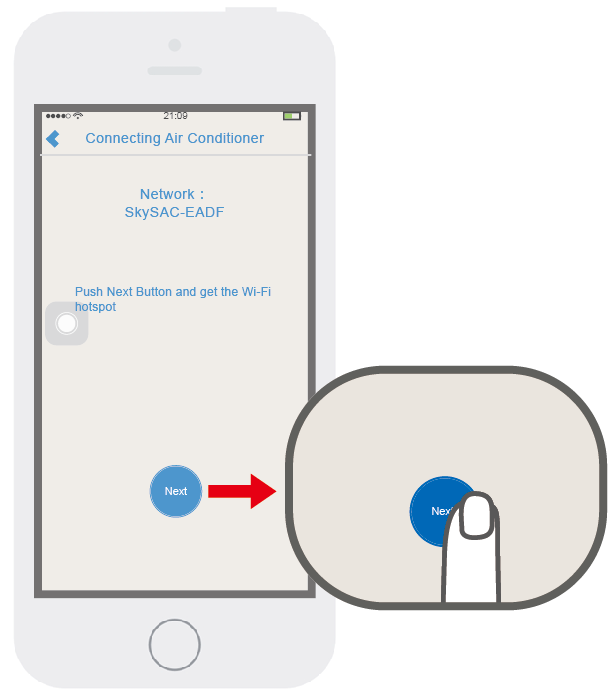

    14. ⑦Press：“Next Step”

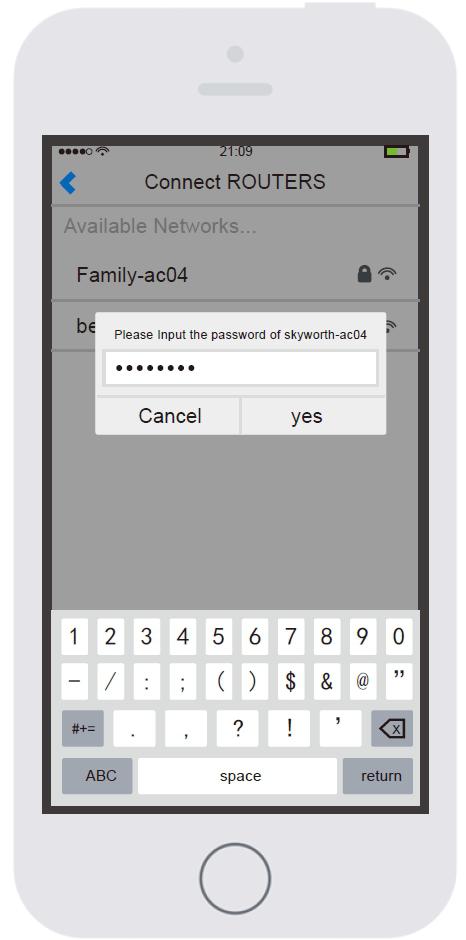

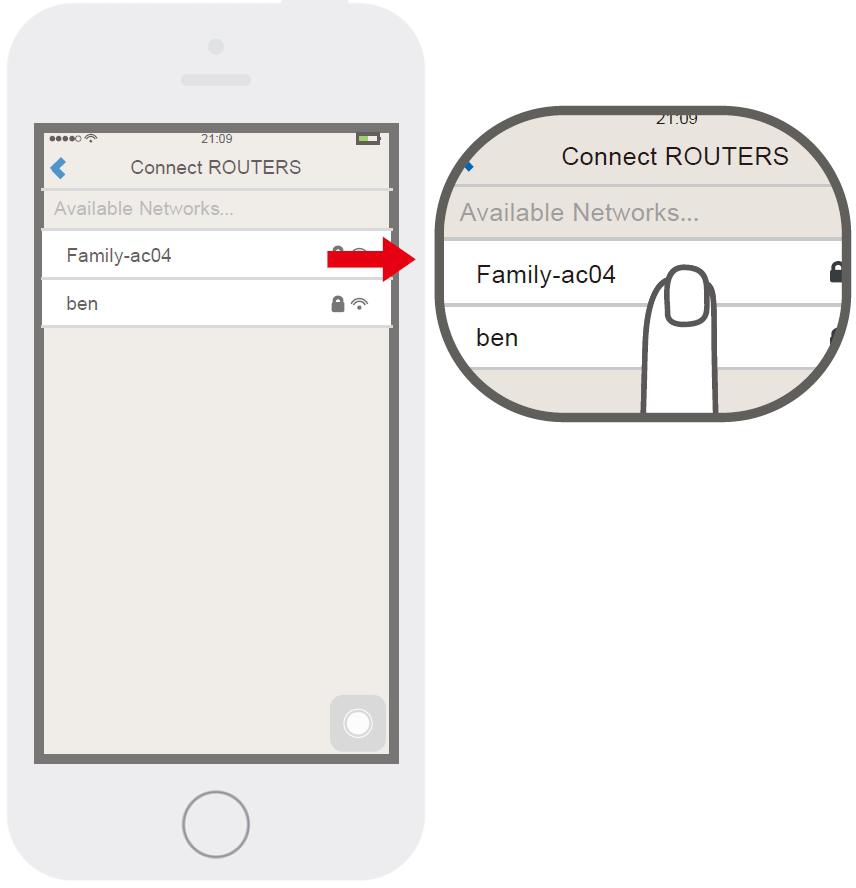

    16. ⑧ Choose the network and type in the password.

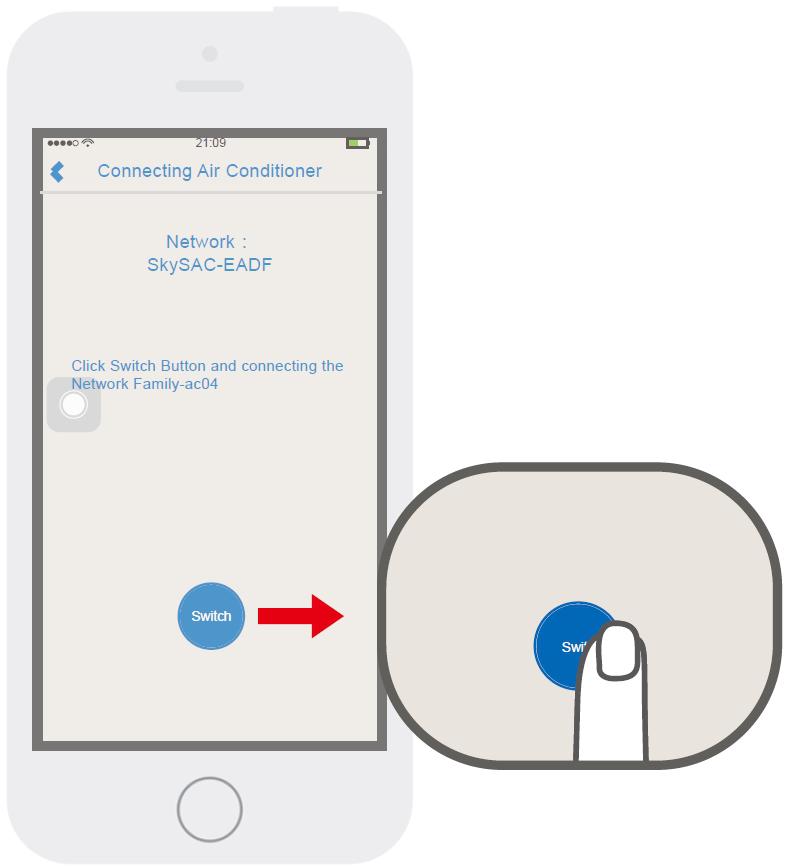

    19. ⑨ Click to change network

    21. ⑩ Press “Back ” return to Cvmore Smart Air Conditioner APP

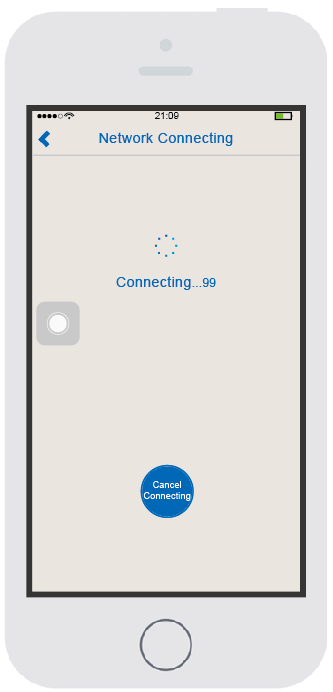

    24. Waiting for the configuration to success

    26. After connect successful，it will enter the main interface

    Notice:
    1.        ◆Support WPA/WPA2 wireless router connected encryption.
    2.        ◆5G wireless router is not supported.
    3.        ◆The password should limit in 8-32 characters or without password.
    4.        ◆This user guide with aim of Family_ac04 as the AC connecting network. When user operating the AC at home, please replace the Family_ac04 to actual Wi-Fi Name from your house.
6 Search the air conditioner in Wireless Local Area Network (WLAN)

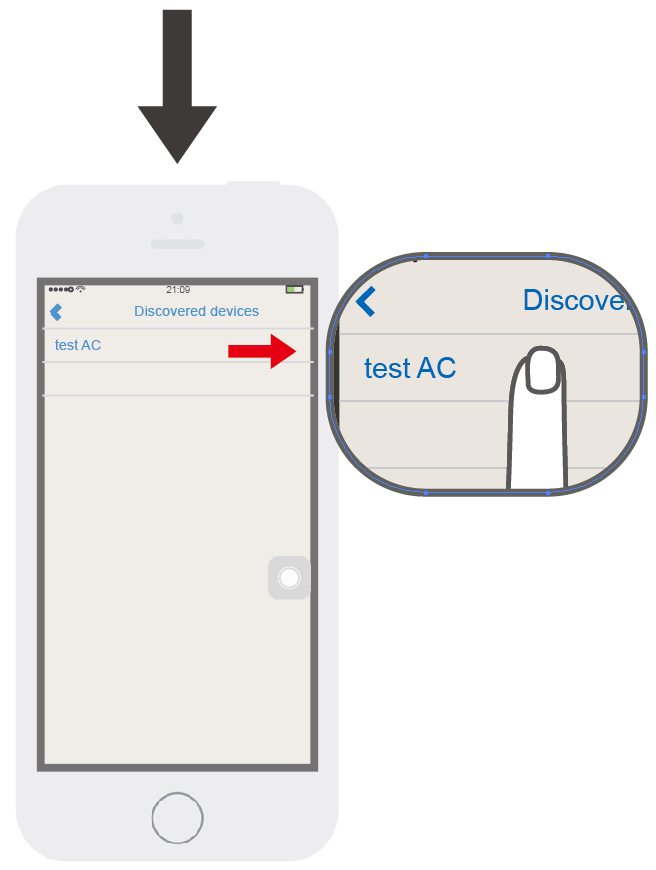

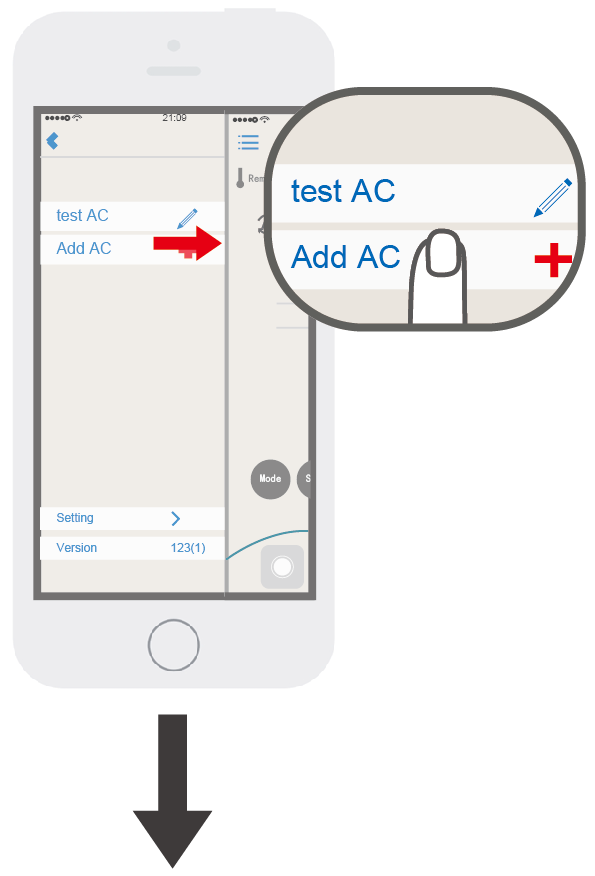

  1. If the air conditioner has already connected to the WLAN, a new mobile phone users that connected with same WLAN can search the air conditioner through the APP. Enter the APP and select “Add AC” from the menu, and enter the page as shown in figure. Click "Yes", the APP will automatically search for the air-conditioner under same WLAN. If the AC is successfully located, it will automatically enter the control interface.
  3. Notice: the AC is controlled only within the WLAN (without connected to Internet), up to two mobile devices can be supported at the same time.
7 Operation Notice

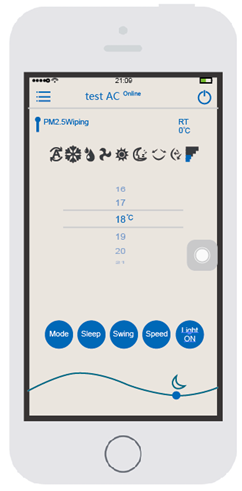

  1. (1) Main Control Interface
  3. ①Power button: Turn on/off the air conditioner.
    ②Temperature zone: Slide up and down to set temperature
    ③Mode button: Press to set the mode such as Cooling, Auto or Heating.
    ④Swing button: Press to switch the swing status.
    ⑤Fan speed button: Press to switch the fan speed.
    ⑥Sleep button: Press to enter the sleep mode.
    ⑦Light ON/OFF：Click to switch the Light state.
    ⑧The moon icon on the right side shows the evening, when it move to left side will show sun icon for the day.
    ⑨MENU button：Press to display other added AC list and add new AC.

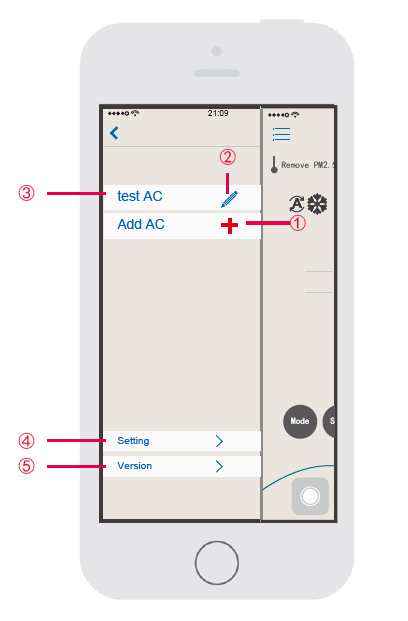

  4. (2) Menu Content
  6. ①Add Air Conditioner: See Chapter 5 “add Air Conditioner”.
    ②Modify the name: Click the icon to rename for Air Conditioner.

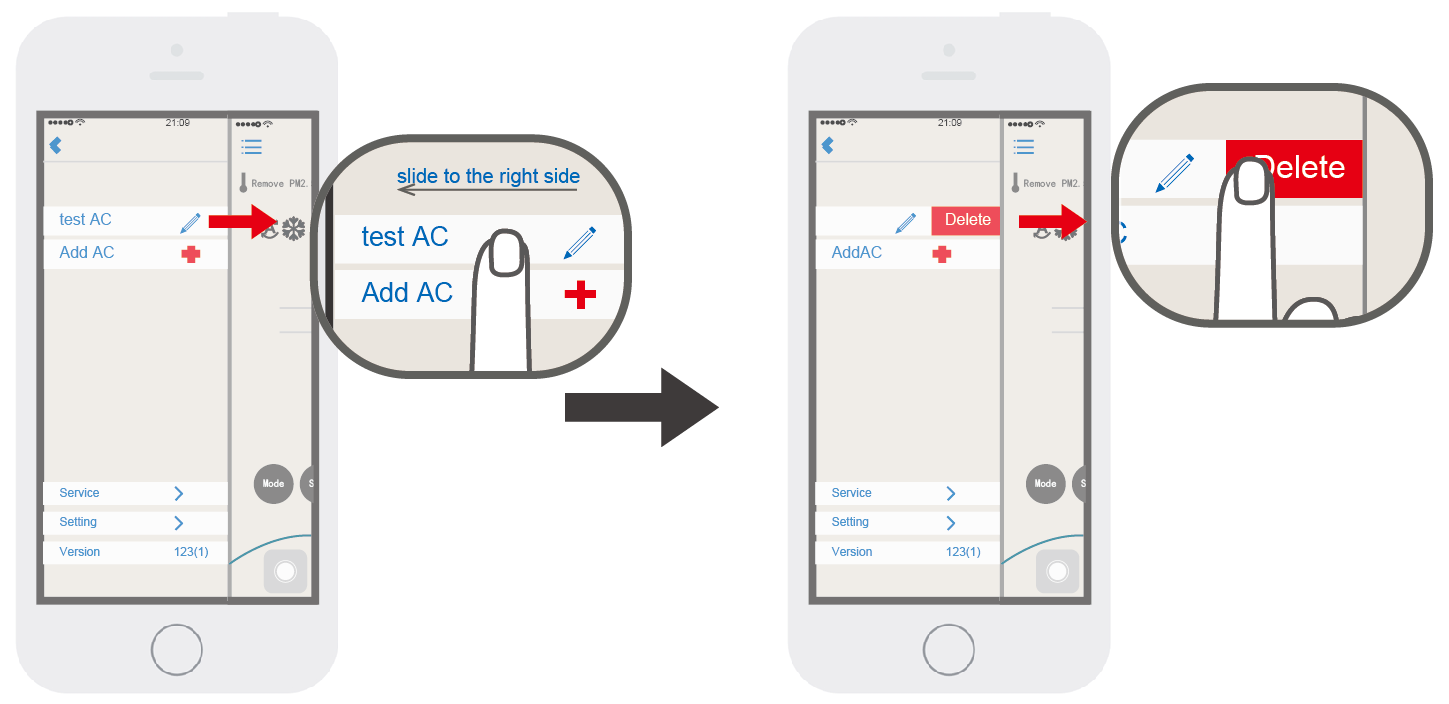

    ③Delete Air Conditioner
          Long press added AC to delete on Android APP
          Slide left for delete on iOS APP to delete Air Conditioner
    ④Setting: You can set the Air Conditioner auxiliary function, upgrade the Smart module APP and so on.
    ⑤Latest Version: Current APP version information
8 Problems and Solutions
  1. (1)Requirement for use

    ◆Wireless Router for Wi-Fi function
          ◆Android 4.4 or later version or iOS7.0 or later version iPhone.
          Notice: Please connect the router to the Internet when it required.

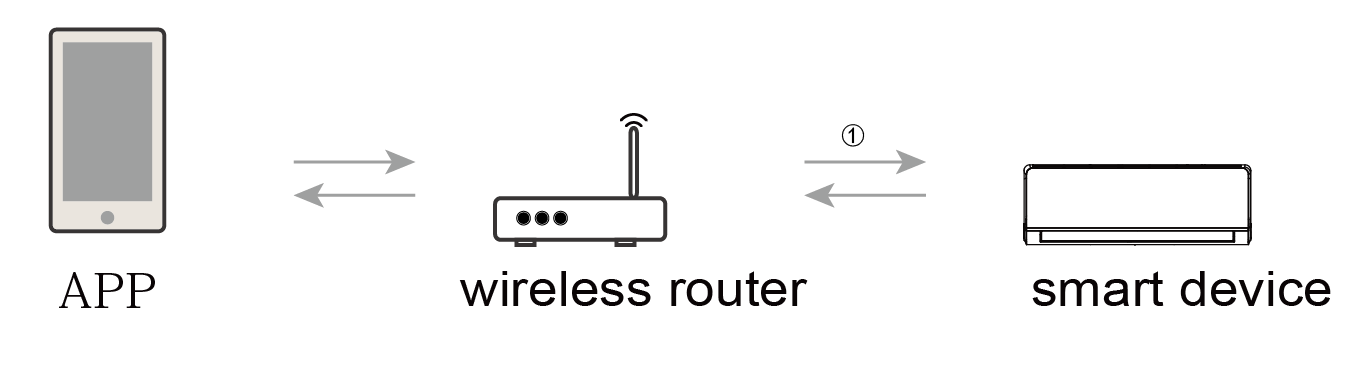

  2. (2)Diagram of communication

    The path of communication between mobile phone and air conditioner:

    Figure8.1

    When the mobile phone and smart air conditioner connected to the same wireless router, it is as shown in Figure 8.1 to achieve the connection.

  3. (3)How to add air conditioner on APP

    Please find the operating steps and method about add air conditioner in Chapter 5 or 6 for detail.

  4. (4)How to delete the air conditioner on APP

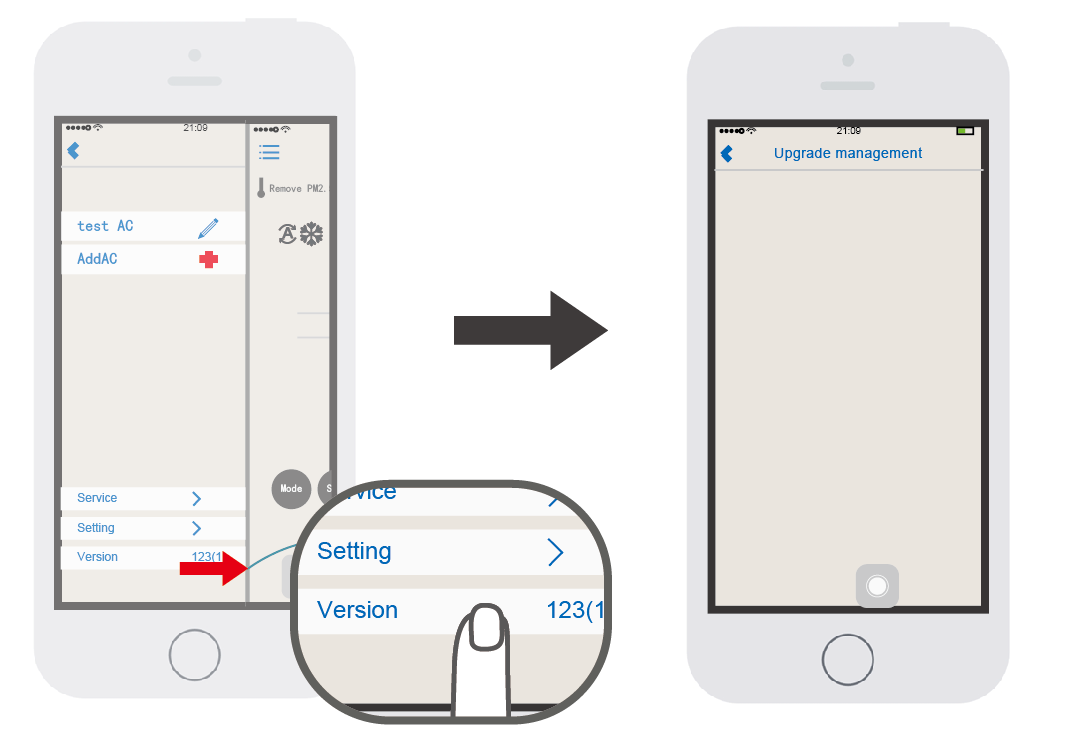

  5. (5)APP software upgrading method

    Press current version in menu, enter the version update and description page, and choose to upgrade the APP according to the content page.

  6. (6)Air Conditioner Wi-Fi indication light quick blinking (Blink once every 1 second)

    The Wi-Fi module is being configured, see point 5 for more details.。

  7. (7)Air Conditioner Wi-Fi indication light slow blinking（Blink once every 10 second）

    A.If the phone can normally control the air conditioning ,it will not affect to use, please ignore this phenomenon.
    Otherwise, please check whether the router ,the password and the network is normal. It is recommended that you use the mobile phone connect
          B:If the router is normal, please add the air conditioner again.

  8. (8)Air conditioner is offline

    Please check whether the air conditioner is connected to the power supply, the router network is normal. If the network signal is normal, may need to wait for a period of time.

  9. (9)APP abnormally quit

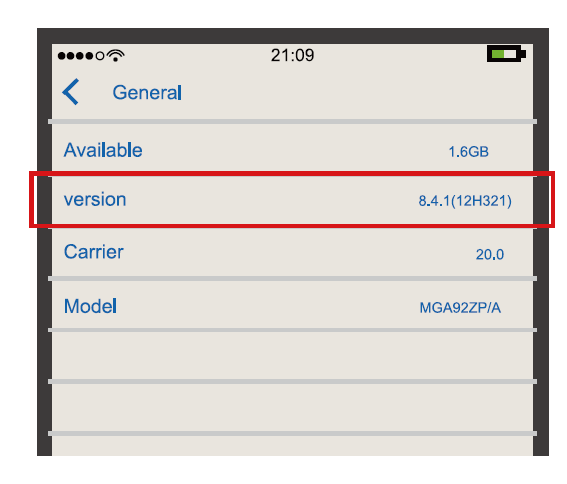

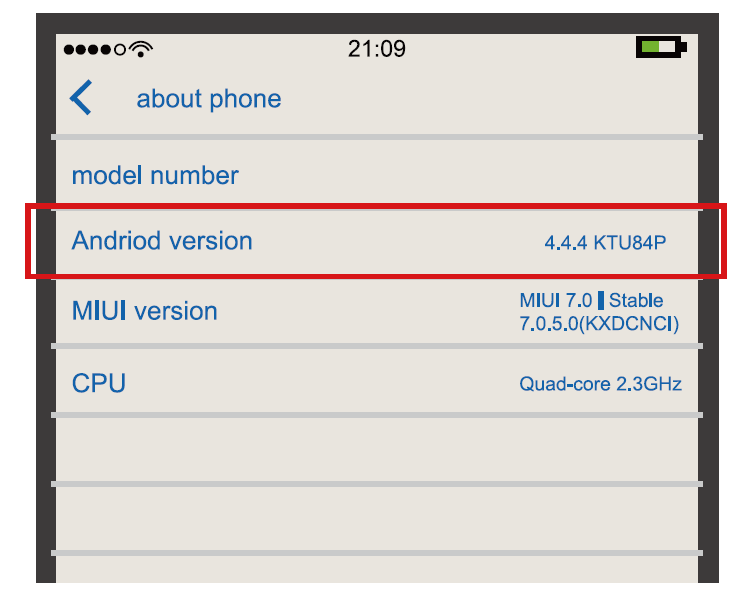

    Please verify that the iPhone system version is iOS7.0 or later and Android phone system version is 4.4 or later.
    If the version meets the requirements, but the problem still happens, please contact us for further assistance.

  10. (10)Meaning of the Wi-Fi indication light

    When the indication light on:
          ①Turn on the Wi-Fi function, Wi-Fi indication light will be on, turn off the Wi-Fi function, Wi-Fi indication light gets off.
          ②When enter quick configuration function, Wi-Fi indication light blinks (1s to 0.1s), after succeed, the Wi-Fi indication light stop blinking, Wi-Fi indication lights will be all on.
          ③When Wi-Fi module and the Internet is disconnected, Wi-Fi indication lights will blink once every 10s (bright 10s off 0.1s).
          When the indication light is turned off:
    Wi-Fi light gets off, the Wi-Fi function can still be controlled.

  11. (11) What is the applicable range for Cvmore Air Conditioner Wi-Fi module?

    This module is only applicable to Cvmore Air conditioner.

  12. (12)Disconnected frequently

    Please check if there are more than 2 sets of mobile devices connected via the same Wi-Fi router to control the air conditioner.
    Please check whether the network environment is complicate and network connection quality is good.If the network environment is complicated, the network communication speed is very slow, it is easy to occur the delay or unable operation.
